The easiest, and probably safest, way to install up to date Arduino toolsets is to use the venerable old Arduino IDE. This allows you to install toolsets for specific boards under your own OS account, and does so without requiring root access to your system.
Note: There is a new and improved IDE but since the whole point of dno is to avoid using an IDE we will stick to using the simple old one. As little as possible.
You will want to first ensure that all installed packages are
up to date (do this as root: you can use
sudo to run a command as root but please
note this objection):
~# apt update ~# apt upgrade
Now, again as root, we install the arduino
package:
~# apt install arduino Reading package lists... Done Building dependency tree... Done Reading state information... Done The following additional packages will be installed: arduino-builder arduino-core-avr arduino-ctags avr-libc avrdude binutils-avr extra-xdg-menus gcc-avr java-wrappers libapache-pom-java libastylej-jni libbatik-java libbcpg-java libbcprov-java libcommons-codec-java libcommons-compress-java libcommons-exec-java libcommons-io-java libcommons-lang3-java libcommons-logging-java libcommons-net-java libcommons-parent-java libftdi1 libgoogle-gson-java libhidapi-libusb0 libhttpclient-java libhttpcore-java libjackson2-annotations-java libjackson2-core-java libjackson2-databind-java libjaxp1.3-java libjmdns-java libjna-java libjna-jni libjna-platform-java libjsch-java libjssc-java libjzlib-java liblightcouch-java liblistserialsj-dev liblistserialsj1 liblog4j2-java libmongodb-java librsyntaxtextarea-java librxtx-java libsemver-java libserialport0 libslf4j-java libusb-0.1-4 libxalan2-java libxerces2-java libxml-commons-external-java libxml-commons-resolver1.1-java libxmlgraphics-commons-java Suggested packages: avrdude-doc gcc-doc librhino-java libbcpg-java-doc libbcprov-java-doc libxz-java libcommons-io-java-doc libcommons-lang3-java-doc libavalon-framework-java libcommons-logging-java-doc libexcalibur-logkit-java liblog4j1.2-java libcommons-net-java-doc libgoogle-gson-java-doc libjackson2-annotations-java-doc libjna-java-doc libcommons-csv-java libconversant-disruptor-java libdisruptor-java libgeronimo-jms-1.1-spec-java libjackson2-dataformat-xml-java libjackson2-dataformat-yaml libjansi-java libjctools-java libjeromq-java libmail-java libwoodstox-java librsyntaxtextarea-java-doc libsemver-java-doc libxalan2-java-doc libbsf-java libxsltc-java libxerces2-java-doc libxml-commons-resolver1.1-java-doc libxmlgraphics-commons-java-doc The following NEW packages will be installed: arduino arduino-builder arduino-core-avr arduino-ctags avr-libc avrdude binutils-avr extra-xdg-menus gcc-avr java-wrappers libapache-pom-java libastylej-jni libbatik-java libbcpg-java libbcprov-java libcommons-codec-java libcommons-compress-java libcommons-exec-java libcommons-io-java libcommons-lang3-java libcommons-logging-java libcommons-net-java libcommons-parent-java libftdi1 libgoogle-gson-java libhidapi-libusb0 libhttpclient-java libhttpcore-java libjackson2-annotations-java libjackson2-core-java libjackson2-databind-java libjaxp1.3-java libjmdns-java libjna-java libjna-jni libjna-platform-java libjsch-java libjssc-java libjzlib-java liblightcouch-java liblistserialsj-dev liblistserialsj1 liblog4j2-java libmongodb-java librsyntaxtextarea-java librxtx-java libsemver-java libserialport0 libslf4j-java libusb-0.1-4 libxalan2-java libxerces2-java libxml-commons-external-java libxml-commons-resolver1.1-java libxmlgraphics-commons-java 0 upgraded, 55 newly installed, 0 to remove and 5 not upgraded. Need to get 57.5 MB of archives. After this operation, 189 MB of additional disk space will be used. [ . . . ] Do you want to continue? [Y/n] y Get:1 http://archive.ubuntu.com/ubuntu jammy/universe amd64 arduino-ctags amd64 5.8-arduino11-1 [123 kB] Get:2 http://security.ubuntu.com/ubuntu jammy-security/universe amd64 libbatik-java all 1.14-1ubuntu0.2 [3,866 kB] Get:3 http://archive.ubuntu.com/ubuntu jammy/universe amd64 arduino-builder amd64 1.3.25-3 [902 kB] Get:4 http://archive.ubuntu.com/ubuntu jammy/universe amd64 binutils-avr amd64 2.26.20160125+Atmel3.6.2-4 [1,697 kB] Get:5 http://archive.ubuntu.com/ubuntu jammy/universe amd64 gcc-avr amd64 1:5.4.0+Atmel3.6.2-3 [17.2 MB] Get:6 http://security.ubuntu.com/ubuntu jammy-security/universe amd64 libcommons-net-java all 3.6-1+deb11u1build0.22.04.1 [281 kB] Get:7 http://security.ubuntu.com/ubuntu jammy-security/universe amd64 libgoogle-gson-java all 2.8.8-1ubuntu0.1 [219 kB] Get:8 http://archive.ubuntu.com/ubuntu jammy/universe amd64 avr-libc all 1:2.0.0+Atmel3.6.2-3 [4,859 kB] Get:9 http://archive.ubuntu.com/ubuntu jammy/universe amd64 arduino-core-avr all 1.8.4+dfsg1-1 [196 kB] Get:10 http://archive.ubuntu.com/ubuntu jammy/main amd64 libusb-0.1-4 amd64 2:0.1.12-32build3 [17.7 kB] Get:11 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libftdi1 amd64 0.20-4ubuntu1 [15.4 kB] Get:12 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libhidapi-libusb0 amd64 0.11.2-1 [17.8 kB] Get:13 http://archive.ubuntu.com/ubuntu jammy/universe amd64 avrdude amd64 6.3-20171130+svn1429-2 [316 kB] Get:14 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libastylej-jni amd64 3.1-2build1 [105 kB] Get:15 http://archive.ubuntu.com/ubuntu jammy/universe amd64 java-wrappers all 0.3 [9,560 B] Get:16 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjaxp1.3-java all 1.3.05-6 [227 kB] Get:17 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libxml-commons-external-java all 1.4.01-5 [240 kB] Get:18 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libxml-commons-resolver1.1-java all 1.2-11 [97.6 kB] Get:19 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libxerces2-java all 2.12.1-1 [1,437 kB] Get:20 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libxalan2-java all 2.7.2-4 [3,416 kB] Get:21 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libapache-pom-java all 18-1 [4,720 B] Get:22 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libcommons-parent-java all 43-1 [10.8 kB] Get:23 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libcommons-io-java all 2.11.0-2 [297 kB] Get:24 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libcommons-logging-java all 1.2-2 [60.3 kB] Get:25 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libxmlgraphics-commons-java all 2.6-1 [612 kB] Get:26 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libbcprov-java all 1.68-5 [3,457 kB] Get:27 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libbcpg-java all 1.68-5 [267 kB] Get:28 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libcommons-codec-java all 1.15-1 [291 kB] Get:29 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libcommons-compress-java all 1.21-1 [575 kB] Get:30 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libcommons-exec-java all 1.3-2 [48.1 kB] Get:31 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libcommons-lang3-java all 3.11-1 [526 kB] Get:32 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libhttpcore-java all 4.4.14-2 [606 kB] Get:33 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libhttpclient-java all 4.5.13-3 [1,226 kB] Get:34 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjackson2-annotations-java all 2.13.0-1 [64.7 kB] Get:35 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjackson2-core-java all 2.13.0-2 [354 kB] Get:36 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjackson2-databind-java all 2.13.0-2 [1,382 kB] Get:37 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libslf4j-java all 1.7.32-1 [141 kB] Get:38 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjmdns-java all 3.5.5-1 [201 kB] Get:39 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjna-jni amd64 5.9.0-1 [33.1 kB] Get:40 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjna-java all 5.9.0-1 [193 kB] Get:41 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjna-platform-java all 5.9.0-1 [1,119 kB] Get:42 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjzlib-java all 1.1.3-2 [77.5 kB] Get:43 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjsch-java all 0.1.55-1 [283 kB] Get:44 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libjssc-java amd64 2.8.0-3 [29.3 kB] Get:45 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libserialport0 amd64 0.1.1-4 [22.4 kB] Get:46 http://archive.ubuntu.com/ubuntu jammy-updates/universe amd64 liblistserialsj1 amd64 1.4.0-1ubuntu0.22.04.1 [4,664 B] Get:47 http://archive.ubuntu.com/ubuntu jammy-updates/universe amd64 liblistserialsj-dev amd64 1.4.0-1ubuntu0.22.04.1 [1,518 B] Get:48 http://archive.ubuntu.com/ubuntu jammy/universe amd64 liblightcouch-java all 0.0.6-1.1 [65.2 kB] Get:49 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libmongodb-java all 3.6.3-2 [1,899 kB] Get:50 http://archive.ubuntu.com/ubuntu jammy/universe amd64 liblog4j2-java all 2.17.1-1 [2,065 kB] Get:51 http://archive.ubuntu.com/ubuntu jammy/universe amd64 librsyntaxtextarea-java all 2.5.8-1 [1,013 kB] Get:52 http://archive.ubuntu.com/ubuntu jammy/universe amd64 librxtx-java amd64 2.2pre2+dfsg1-2 [348 kB] Get:53 http://archive.ubuntu.com/ubuntu jammy/universe amd64 libsemver-java all 0.9.0-4 [42.2 kB] Get:54 http://archive.ubuntu.com/ubuntu jammy/universe amd64 arduino amd64 2:1.8.19+dfsg1-1 [4,905 kB] Get:55 http://archive.ubuntu.com/ubuntu jammy/universe amd64 extra-xdg-menus all 1.0-6 [11.9 kB] Fetched 57.5 MB in 14s (4,055 kB/s) Extracting templates from packages: 100% Selecting previously unselected package arduino-ctags. (Reading database ... 241774 files and directories currently installed.) Preparing to unpack .../00-arduino-ctags_5.8-arduino11-1_amd64.deb ... Unpacking arduino-ctags (5.8-arduino11-1) ... Selecting previously unselected package arduino-builder. Preparing to unpack .../01-arduino-builder_1.3.25-3_amd64.deb ... Unpacking arduino-builder (1.3.25-3) ... Selecting previously unselected package binutils-avr. Preparing to unpack .../02-binutils-avr_2.26.20160125+Atmel3.6.2-4_amd64.deb ... Unpacking binutils-avr (2.26.20160125+Atmel3.6.2-4) ... Selecting previously unselected package gcc-avr. Preparing to unpack .../03-gcc-avr_1%3a5.4.0+Atmel3.6.2-3_amd64.deb ... Unpacking gcc-avr (1:5.4.0+Atmel3.6.2-3) ... Selecting previously unselected package avr-libc. Preparing to unpack .../04-avr-libc_1%3a2.0.0+Atmel3.6.2-3_all.deb ... Unpacking avr-libc (1:2.0.0+Atmel3.6.2-3) ... Selecting previously unselected package arduino-core-avr. Preparing to unpack .../05-arduino-core-avr_1.8.4+dfsg1-1_all.deb ... Unpacking arduino-core-avr (1.8.4+dfsg1-1) ... Selecting previously unselected package libusb-0.1-4:amd64. Preparing to unpack .../06-libusb-0.1-4_2%3a0.1.12-32build3_amd64.deb ... Unpacking libusb-0.1-4:amd64 (2:0.1.12-32build3) ... Selecting previously unselected package libftdi1:amd64. Preparing to unpack .../07-libftdi1_0.20-4ubuntu1_amd64.deb ... Unpacking libftdi1:amd64 (0.20-4ubuntu1) ... Selecting previously unselected package libhidapi-libusb0:amd64. Preparing to unpack .../08-libhidapi-libusb0_0.11.2-1_amd64.deb ... Unpacking libhidapi-libusb0:amd64 (0.11.2-1) ... Selecting previously unselected package avrdude. Preparing to unpack .../09-avrdude_6.3-20171130+svn1429-2_amd64.deb ... Unpacking avrdude (6.3-20171130+svn1429-2) ... Selecting previously unselected package libastylej-jni:amd64. Preparing to unpack .../10-libastylej-jni_3.1-2build1_amd64.deb ... Unpacking libastylej-jni:amd64 (3.1-2build1) ... Selecting previously unselected package java-wrappers. Preparing to unpack .../11-java-wrappers_0.3_all.deb ... Unpacking java-wrappers (0.3) ... Selecting previously unselected package libjaxp1.3-java. Preparing to unpack .../12-libjaxp1.3-java_1.3.05-6_all.deb ... Unpacking libjaxp1.3-java (1.3.05-6) ... Selecting previously unselected package libxml-commons-external-java. Preparing to unpack .../13-libxml-commons-external-java_1.4.01-5_all.deb ... Unpacking libxml-commons-external-java (1.4.01-5) ... Selecting previously unselected package libxml-commons-resolver1.1-java. Preparing to unpack .../14-libxml-commons-resolver1.1-java_1.2-11_all.deb ... Unpacking libxml-commons-resolver1.1-java (1.2-11) ... Selecting previously unselected package libxerces2-java. Preparing to unpack .../15-libxerces2-java_2.12.1-1_all.deb ... Unpacking libxerces2-java (2.12.1-1) ... Selecting previously unselected package libxalan2-java. Preparing to unpack .../16-libxalan2-java_2.7.2-4_all.deb ... Unpacking libxalan2-java (2.7.2-4) ... Selecting previously unselected package libapache-pom-java. Preparing to unpack .../17-libapache-pom-java_18-1_all.deb ... Unpacking libapache-pom-java (18-1) ... Selecting previously unselected package libcommons-parent-java. Preparing to unpack .../18-libcommons-parent-java_43-1_all.deb ... Unpacking libcommons-parent-java (43-1) ... Selecting previously unselected package libcommons-io-java. Preparing to unpack .../19-libcommons-io-java_2.11.0-2_all.deb ... Unpacking libcommons-io-java (2.11.0-2) ... Selecting previously unselected package libcommons-logging-java. Preparing to unpack .../20-libcommons-logging-java_1.2-2_all.deb ... Unpacking libcommons-logging-java (1.2-2) ... Selecting previously unselected package libxmlgraphics-commons-java. Preparing to unpack .../21-libxmlgraphics-commons-java_2.6-1_all.deb ... Unpacking libxmlgraphics-commons-java (2.6-1) ... Selecting previously unselected package libbatik-java. Preparing to unpack .../22-libbatik-java_1.14-1ubuntu0.2_all.deb ... Unpacking libbatik-java (1.14-1ubuntu0.2) ... Selecting previously unselected package libbcprov-java. Preparing to unpack .../23-libbcprov-java_1.68-5_all.deb ... Unpacking libbcprov-java (1.68-5) ... Selecting previously unselected package libbcpg-java. Preparing to unpack .../24-libbcpg-java_1.68-5_all.deb ... Unpacking libbcpg-java (1.68-5) ... Selecting previously unselected package libcommons-codec-java. Preparing to unpack .../25-libcommons-codec-java_1.15-1_all.deb ... Unpacking libcommons-codec-java (1.15-1) ... Selecting previously unselected package libcommons-compress-java. Preparing to unpack .../26-libcommons-compress-java_1.21-1_all.deb ... Unpacking libcommons-compress-java (1.21-1) ... Selecting previously unselected package libcommons-exec-java. Preparing to unpack .../27-libcommons-exec-java_1.3-2_all.deb ... Unpacking libcommons-exec-java (1.3-2) ... Selecting previously unselected package libcommons-lang3-java. Preparing to unpack .../28-libcommons-lang3-java_3.11-1_all.deb ... Unpacking libcommons-lang3-java (3.11-1) ... Selecting previously unselected package libcommons-net-java. Preparing to unpack .../29-libcommons-net-java_3.6-1+deb11u1build0.22.04.1_all.d eb ... Unpacking libcommons-net-java (3.6-1+deb11u1build0.22.04.1) ... Selecting previously unselected package libhttpcore-java. Preparing to unpack .../30-libhttpcore-java_4.4.14-2_all.deb ... Unpacking libhttpcore-java (4.4.14-2) ... Selecting previously unselected package libhttpclient-java. Preparing to unpack .../31-libhttpclient-java_4.5.13-3_all.deb ... Unpacking libhttpclient-java (4.5.13-3) ... Selecting previously unselected package libjackson2-annotations-java. Preparing to unpack .../32-libjackson2-annotations-java_2.13.0-1_all.deb ... Unpacking libjackson2-annotations-java (2.13.0-1) ... Selecting previously unselected package libjackson2-core-java. Preparing to unpack .../33-libjackson2-core-java_2.13.0-2_all.deb ... Unpacking libjackson2-core-java (2.13.0-2) ... Selecting previously unselected package libjackson2-databind-java. Preparing to unpack .../34-libjackson2-databind-java_2.13.0-2_all.deb ... Unpacking libjackson2-databind-java (2.13.0-2) ... Selecting previously unselected package libslf4j-java. Preparing to unpack .../35-libslf4j-java_1.7.32-1_all.deb ... Unpacking libslf4j-java (1.7.32-1) ... Selecting previously unselected package libjmdns-java. Preparing to unpack .../36-libjmdns-java_3.5.5-1_all.deb ... Unpacking libjmdns-java (3.5.5-1) ... Selecting previously unselected package libjna-jni. Preparing to unpack .../37-libjna-jni_5.9.0-1_amd64.deb ... Unpacking libjna-jni (5.9.0-1) ... Selecting previously unselected package libjna-java. Preparing to unpack .../38-libjna-java_5.9.0-1_all.deb ... Unpacking libjna-java (5.9.0-1) ... Selecting previously unselected package libjna-platform-java. Preparing to unpack .../39-libjna-platform-java_5.9.0-1_all.deb ... Unpacking libjna-platform-java (5.9.0-1) ... Selecting previously unselected package libjzlib-java. Preparing to unpack .../40-libjzlib-java_1.1.3-2_all.deb ... Unpacking libjzlib-java (1.1.3-2) ... Selecting previously unselected package libjsch-java. Preparing to unpack .../41-libjsch-java_0.1.55-1_all.deb ... Unpacking libjsch-java (0.1.55-1) ... Selecting previously unselected package libjssc-java. Preparing to unpack .../42-libjssc-java_2.8.0-3_amd64.deb ... Unpacking libjssc-java (2.8.0-3) ... Selecting previously unselected package libserialport0:amd64. Preparing to unpack .../43-libserialport0_0.1.1-4_amd64.deb ... Unpacking libserialport0:amd64 (0.1.1-4) ... Selecting previously unselected package liblistserialsj1:amd64. Preparing to unpack .../44-liblistserialsj1_1.4.0-1ubuntu0.22.04.1_amd64.deb ... Unpacking liblistserialsj1:amd64 (1.4.0-1ubuntu0.22.04.1) ... Selecting previously unselected package liblistserialsj-dev:amd64. Preparing to unpack .../45-liblistserialsj-dev_1.4.0-1ubuntu0.22.04.1_amd64.deb ... Unpacking liblistserialsj-dev:amd64 (1.4.0-1ubuntu0.22.04.1) ... Selecting previously unselected package libgoogle-gson-java. Preparing to unpack .../46-libgoogle-gson-java_2.8.8-1ubuntu0.1_all.deb ... Unpacking libgoogle-gson-java (2.8.8-1ubuntu0.1) ... Selecting previously unselected package liblightcouch-java. Preparing to unpack .../47-liblightcouch-java_0.0.6-1.1_all.deb ... Unpacking liblightcouch-java (0.0.6-1.1) ... Selecting previously unselected package libmongodb-java. Preparing to unpack .../48-libmongodb-java_3.6.3-2_all.deb ... Unpacking libmongodb-java (3.6.3-2) ... Selecting previously unselected package liblog4j2-java. Preparing to unpack .../49-liblog4j2-java_2.17.1-1_all.deb ... Unpacking liblog4j2-java (2.17.1-1) ... Selecting previously unselected package librsyntaxtextarea-java. Preparing to unpack .../50-librsyntaxtextarea-java_2.5.8-1_all.deb ... Unpacking librsyntaxtextarea-java (2.5.8-1) ... Selecting previously unselected package librxtx-java. Preparing to unpack .../51-librxtx-java_2.2pre2+dfsg1-2_amd64.deb ... Unpacking librxtx-java (2.2pre2+dfsg1-2) ... Selecting previously unselected package libsemver-java. Preparing to unpack .../52-libsemver-java_0.9.0-4_all.deb ... Unpacking libsemver-java (0.9.0-4) ... Selecting previously unselected package arduino. Preparing to unpack .../53-arduino_2%3a1.8.19+dfsg1-1_amd64.deb ... Unpacking arduino (2:1.8.19+dfsg1-1) ... Selecting previously unselected package extra-xdg-menus. Preparing to unpack .../54-extra-xdg-menus_1.0-6_all.deb ... Unpacking extra-xdg-menus (1.0-6) ... Setting up binutils-avr (2.26.20160125+Atmel3.6.2-4) ... Setting up libbcprov-java (1.68-5) ... Setting up libsemver-java (0.9.0-4) ... Setting up libjackson2-annotations-java (2.13.0-1) ... Setting up libslf4j-java (1.7.32-1) ... Setting up java-wrappers (0.3) ... Setting up libjmdns-java (3.5.5-1) ... Setting up libcommons-net-java (3.6-1+deb11u1build0.22.04.1) ... Setting up libcommons-exec-java (1.3-2) ... Setting up libgoogle-gson-java (2.8.8-1ubuntu0.1) ... Setting up extra-xdg-menus (1.0-6) ... Setting up libastylej-jni:amd64 (3.1-2build1) ... Setting up librxtx-java (2.2pre2+dfsg1-2) ... Setting up libjzlib-java (1.1.3-2) ... Setting up libusb-0.1-4:amd64 (2:0.1.12-32build3) ... Setting up libjsch-java (0.1.55-1) ... Setting up gcc-avr (1:5.4.0+Atmel3.6.2-3) ... Setting up arduino-ctags (5.8-arduino11-1) ... Setting up arduino-builder (1.3.25-3) ... Setting up librsyntaxtextarea-java (2.5.8-1) ... Setting up libapache-pom-java (18-1) ... Setting up libxml-commons-resolver1.1-java (1.2-11) ... Setting up libhidapi-libusb0:amd64 (0.11.2-1) ... Setting up libjna-jni (5.9.0-1) ... Setting up libmongodb-java (3.6.3-2) ... Setting up libxml-commons-external-java (1.4.01-5) ... Setting up libjna-java (5.9.0-1) ... Setting up libjackson2-core-java (2.13.0-2) ... Setting up libhttpcore-java (4.4.14-2) ... Setting up libbcpg-java (1.68-5) ... Setting up libxerces2-java (2.12.1-1) ... Setting up libjaxp1.3-java (1.3.05-6) ... Setting up libserialport0:amd64 (0.1.1-4) ... Setting up libjssc-java (2.8.0-3) ... Setting up libcommons-parent-java (43-1) ... Setting up liblistserialsj1:amd64 (1.4.0-1ubuntu0.22.04.1) ... Setting up libftdi1:amd64 (0.20-4ubuntu1) ... Setting up libcommons-logging-java (1.2-2) ... Setting up libjna-platform-java (5.9.0-1) ... Setting up avr-libc (1:2.0.0+Atmel3.6.2-3) ... Setting up libjackson2-databind-java (2.13.0-2) ... Setting up libxalan2-java (2.7.2-4) ... Setting up liblistserialsj-dev:amd64 (1.4.0-1ubuntu0.22.04.1) ... Setting up libcommons-lang3-java (3.11-1) ... Setting up libcommons-codec-java (1.15-1) ... Setting up arduino-core-avr (1.8.4+dfsg1-1) ... Setting up avrdude (6.3-20171130+svn1429-2) ... Setting up libcommons-compress-java (1.21-1) ... Setting up libcommons-io-java (2.11.0-2) ... Setting up libxmlgraphics-commons-java (2.6-1) ... Setting up libhttpclient-java (4.5.13-3) ... Setting up liblightcouch-java (0.0.6-1.1) ... Setting up libbatik-java (1.14-1ubuntu0.2) ... Setting up liblog4j2-java (2.17.1-1) ... Setting up arduino (2:1.8.19+dfsg1-1) ... Processing triggers for hicolor-icon-theme (0.17-2) ... Processing triggers for gnome-menus (3.36.0-1ubuntu3) ... Processing triggers for libc-bin (2.35-0ubuntu3.8) ... Processing triggers for man-db (2.10.2-1) ... Processing triggers for shared-mime-info (2.1-2) ... Processing triggers for mailcap (3.70+nmu1ubuntu1) ... Processing triggers for desktop-file-utils (0.26-1ubuntu3) ... ~# exit ~$
At this point, you should re-run the dno installation steps of configure, make, make install so that dno can find the board configuration files associated with the Arduino IDE.
We can check that dno can find the newly installed Arduino board
files using dno show_boards:
~$ dno show_boards
Supported ArduinoBoard and CPU Types
============================================================
unomini Arduino Uno Mini
circuitplay32u4cat Adafruit Circuit Playground
robotControl Arduino Robot Control
leonardoeth Arduino Leonardo ETH
uno Arduino Uno
yun Arduino Yún
yunmini Arduino Yún Mini
lilypad LilyPad Arduino
atmega168 ATmega168
atmega328 ATmega328P
diecimila Arduino Duemilanove or Diecimila
atmega168 ATmega168
atmega328 ATmega328P
mega Arduino Mega or Mega 2560
atmega1280 ATmega1280
atmega2560 ATmega2560 (Mega 2560)
atmegang Arduino NG or older
atmega168 ATmega168
atmega8 ATmega8
leonardo Arduino Leonardo
LilyPadUSB LilyPad Arduino USB
ethernet Arduino Ethernet
esplora Arduino Esplora
pro Arduino Pro or Pro Mini
16MHzatmega168 ATmega168 (5V, 16 MHz)
8MHzatmega168 ATmega168 (3.3V, 8 MHz)
16MHzatmega328 ATmega328P (5V, 16 MHz)
8MHzatmega328 ATmega328P (3.3V, 8 MHz)
nano Arduino Nano
atmega168 ATmega168
atmega328 ATmega328P
atmega328old ATmega328P (Old Bootloader)
bt Arduino BT
atmega168 ATmega168
atmega328 ATmega328P
unowifi Arduino Uno WiFi
robotMotor Arduino Robot Motor
micro Arduino Micro
gemma Arduino Gemma
megaADK Arduino Mega ADK
chiwawa Arduino Industrial 101
fio Arduino Fio
mini Arduino Mini
atmega168 ATmega168
atmega328 ATmega328P
one Linino One
~$
We can now use the Arduino IDE to get the latest curated configuration and toolset files from trusted sources.

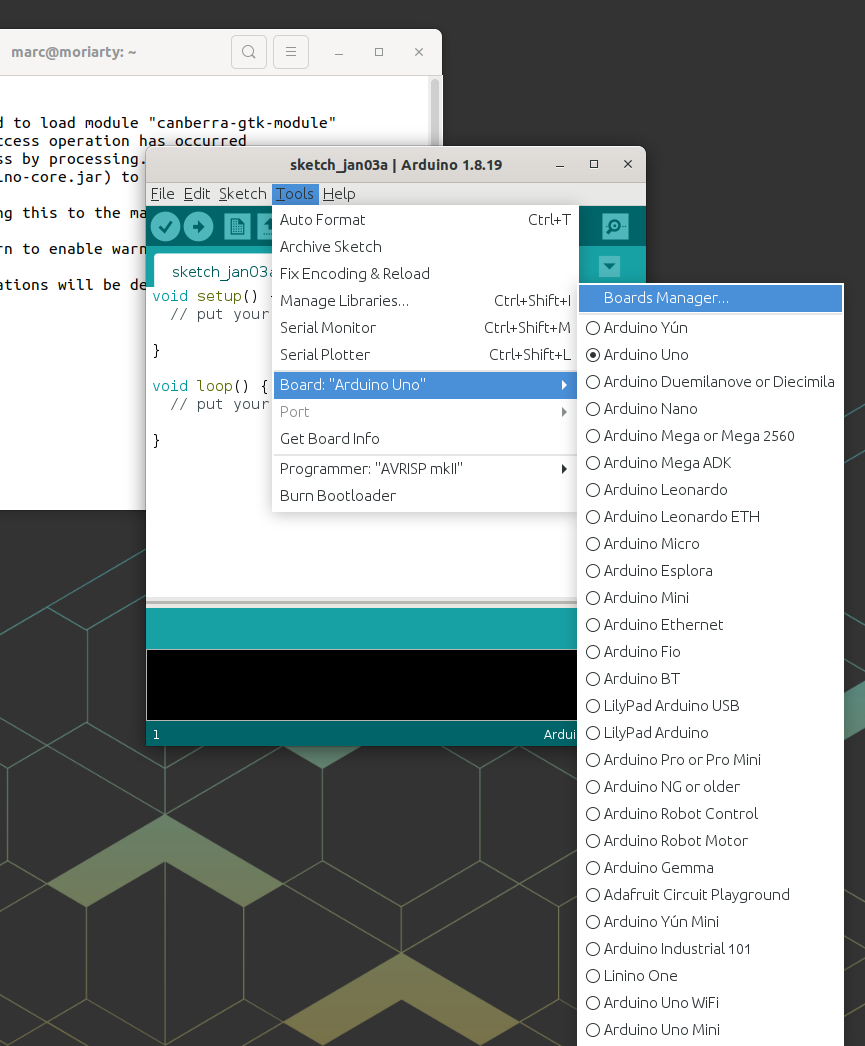

Invoke the Arduino IDE and select
Tools->Board->Boards Manager like this:

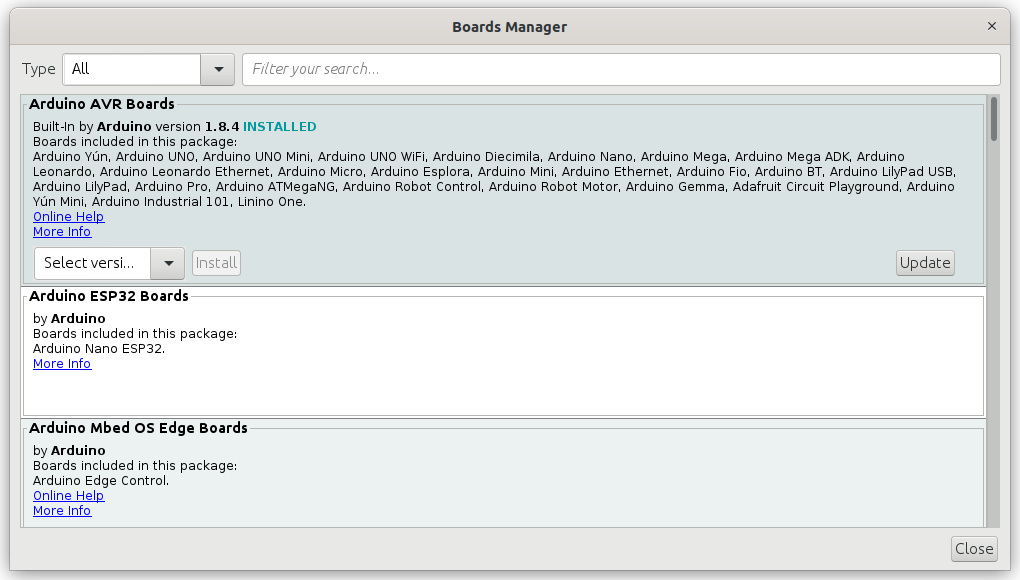

The Boards Manager selector looks like a
heading for the bullet list but is, in fact, selectable.
Mouse over the “Arduino AVR Boards” block, and
the Update button should appear. Press
that button.
Now, we need to tell dno where to find the new files. We start by figuring out for ourselves where the IDE installed everything.
On Debian, the files are installed in the
user's home directory in a hidden directory named
.arduino15.
You can identify this directory using
ls from your home directory:
~$ ls -ltr total xxxxxxx [ redacted ] drwx------ 2 user user 4096 Jan 5 13:51 .ssh drwxrwxr-x 2 user user 4096 Jan 5 13:56 Screenshots drwxrwxr-x 5 user user 4096 Jan 5 13:57 .arduino15 drwxr-x--- 18 user user 4096 Jan 5 13:59 . ~$
This shows files and directories in order of creation, with the most recently created appearing last. You should see a directory near the end of the listing that will be where the files were installed.
Move into the installation directory and look for a file
called boards.txt using
find:
~$ cd .arduino15/ .arduino15$ find . -name boards.txt ./packages/arduino/hardware/avr/1.8.6/boards.txt .arduino15$
Now we can tell dno where to find that file. We run
dno with the
install_extra_boards target and with the
variable BOARDS_PATH set to the full
directory path for the boards.txt
discovered above:
~$ dno install_extra_boards BOARDS_PATH=~/arduino15/packages/arduino/hardware/avr/1.8.6 ~$
If there are no errors, all has gone well. Confirm this using
the show_extra_boards target:
~$ dno show_extra_boards Supplemental boards.txt directories: ~/.arduino15/packages/arduino/hardware/avr/1.8.6 ~$
You can install support for non Arduino/avr boards in the same way. Invoke the Arduino IDE's Board Manager as described above

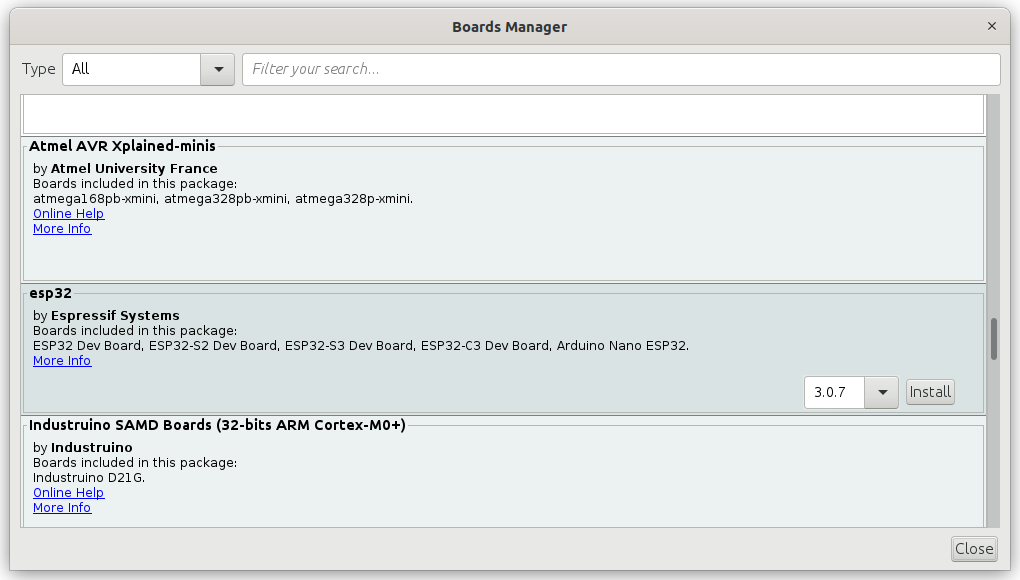

In the Boards Manager, scroll down to the set of boards you
are interested in, mouse over the appropriate block and click on
Install. The example below shows us
selecting esp32 boards.
The new files will be loaded into the same directory system as
before. Move into the top of that directory system using
cd and run the find
command again:
~$ cd .arduino15/ ~$ find . -name boards.txt ./packages/esp32/hardware/esp32/3.0.7/boards.txt ./packages/arduino/hardware/avr/1.8.6/boards.txt ~$
You will tell dno about the new files using the
install_extra_boards target again as,
again, described above.
Finally, you can see the full set of boards now supported by
dno using dno show_boards:
~$ dno show_boards
Supported ArduinoBoard and CPU Types
============================================================
waveshare_esp32_s3_touch_lcd_4 Waveshare ESP32-S3-Touch-LCD-4
waveshare_esp32_s3_touch_lcd_43 Waveshare ESP32-S3-Touch-LCD-4.3
heltec_wifi_kit_32_V3 Heltec WiFi Kit 32(V3)
adafruit_feather_esp32s3 Adafruit Feather ESP32-S3 2MB PSRAM
esp32s3usbotg ESP32-S3-USB-OTG
waveshare_esp32_s3_touch_lcd_5 Waveshare ESP32-S3-Touch-LCD-5
S_ODI_Ultra S.ODI Ultra v1
esp32s3-octal ESP32S3 Dev Module Octal (WROOM2)
heltec_vision_master_e_213 Heltec Vision Master E213
esp32c3-devkitlipo OLIMEX ESP32-C3-DevKit-Lipo
waveshare_esp32_s3_touch_lcd_7 Waveshare ESP32-S3-Touch-LCD-7
uPesy_wrover uPesy ESP32 Wrover DevKit
heltec_vision_master_t190 Heltec Vision Master T190
esp32c2 ESP32C2 Dev Module
heltec_vision_master_e290 Heltec Vision Master E290
esp32h2-devkitlipo OLIMEX ESP32-H2-DevKit-LiPo
esp32c3 ESP32C3 Dev Module
deneyapmini Deneyap Mini
m5stack_stickc_plus2 M5StickCPlus2
wifiduino32 WiFiduino32
adafruit_magtag29_esp32s2 Adafruit MagTag 2.9"
Edgebox-ESP-100 Edgebox-ESP-100
d1_uno32 WEMOS D1 R32
esp32c6-evb OLIMEX ESP32-C6-EVB
um_tinyc6 UM TinyC6
esp32c6 ESP32C6 Dev Module
department_of_alchemy_minimain_esp32s2 Department of Alchemy MiniMain ESP32-S2
lopy LoPy
m5stack_atom M5Atom
adafruit_qtpy_esp32s3_nopsram Adafruit QT Py ESP32-S3 No PSRAM
heltec_wireless_bridge Heltec Wireless Bridge
honeylemon HONEYLemon
m5stack_nanoc6 M5NanoC6
lionbit Lion:Bit Dev Board
adafruit_feather_esp32_v2 Adafruit Feather ESP32 V2
lolin32-lite WEMOS LOLIN32 Lite
ioxesp32ps IOXESP32PS
heltec_wireless_stick Heltec Wireless Stick
m5stack_atoms3 M5AtomS3
firebeetle32 FireBeetle-ESP32
lolin_s2_pico LOLIN S2 PICO
lilypad LilyPad Arduino
atmega168 ATmega168
atmega328 ATmega328P
esp32-trueverit-iot-driver Trueverit ESP32 Universal IoT Driver
lilygo_t_eth_lite LilyGo T-ETH-Lite
sparkfun_lora_gateway_1-channel SparkFun LoRa Gateway 1-Channel
deneyapkartg Deneyap Kart G
heltec_wifi_kit_32 Heltec WiFi Kit 32
esp32doit-espduino DOIT ESPduino32
imbrios-logsens-v1p1 IMBRIOS LOGSENS_V1P1
adafruit_feather_esp32s3_reversetft Adafruit Feather ESP32-S3 Reverse TFT
deneyapkart1Av2 Deneyap Kart 1A v2
m5stack_core2 M5Core2
redpill_esp32s3 RedPill(+) ESP32-S3
heltec_wireless_stick_V3 Heltec Wireless Stick(V3)
adafruit_qtpy_esp32c3 Adafruit QT Py ESP32-C3
sparkfun_esp32s2_thing_plus SparkFun ESP32-S2 Thing Plus
twatch_ultra LilyGo T-Watch-Ultra
alfredo-nou3 Alfredo NoU3
mgbot-iotik32a MGBOT IOTIK 32A
wt32-eth01 WT32-ETH01 Ethernet Module
node32s Node32s
um_bling UM BLING
esp32s3_powerfeather ESP32-S3 PowerFeather
Bee_Data_Logger Bee Data Logger
mgbot-iotik32b MGBOT IOTIK 32B
heltec_wireless_mini_shell Heltec Wireless Mini Shell
heltec_wifi_lora_32_V2 Heltec WiFi LoRa 32(V2)
uPesy_wroom uPesy ESP32 Wroom DevKit
heltec_wifi_lora_32_V3 Heltec WiFi LoRa 32(V3)
esp32 ESP32 Dev Module
nano_nora.debug_config.nano_nora.cortex-debug.custom Arduino on Nano ESP32
Bee_Motion_S3 Bee Motion S3
micro Arduino Micro
Bee_Motion Bee Motion
m5stack_unit_cam M5UnitCAM
ttgo-lora32 TTGO LoRa32-OLED
heltec_wifi_lora_32 Heltec WiFi LoRa 32
viralink32g01 ViraLink Gate32-0.1
leonardoeth Arduino Leonardo ETH
dfrobot_beetle_esp32c3 DFRobot Beetle ESP32-C3
hornbill32dev Hornbill ESP32 Dev
micros2 microS2
ethernet Arduino Ethernet
fri3d_2024_esp32s3 Fri3d Badge 2024 (ESP32-S3-WROOM-1)
WeMosBat WeMos WiFi&Bluetooth Battery
d32_pro LOLIN D32 PRO
ttgo-t-oi-plus TTGO T-OI PLUS RISC-V ESP32-C3
unphone7 unPhone 7
twatch TTGO T-Watch
esp32thing_plus_c SparkFun ESP32 Thing Plus C
VALTRACK_V4_MFW_ESP32_C3 VALTRACK_V4_MFW_ESP32_C3
cytron_maker_feather_aiot_s3 Cytron Maker Feather AIoT S3
unphone8 unPhone 8
AirM2M_CORE_ESP32C3 AirM2M_CORE_ESP32C3
esp32vn-iot-uno ESP32vn IoT Uno
dfrobot_beetle_esp32c6 DFRobot Beetle ESP32-C6
um_feathers3neo UM FeatherS3 Neo
unphone9 unPhone 9
franzininho_wifi_msc_esp32s2 Franzininho WiFi MSC
esp32cam AI Thinker ESP32-CAM
yun Arduino Yún
d1_mini32 WEMOS D1 MINI ESP32
m5stack_cardputer M5Cardputer
m5stack_core M5Core
aslcanx2 AutosportLabs ESP-CAN-X2
adafruit_funhouse_esp32s2 Adafruit FunHouse
robotMotor Arduino Robot Motor
lolin_s2_mini LOLIN S2 Mini
one Linino One
m5stack_station M5Station
BharatPi-A7672S-4G BharatPi A7672S 4G Module
pico32 ESP32 PICO-D4
dfrobot_firebeetle2_esp32c6 DFRobot FireBeetle 2 ESP32-C6
XIAO_ESP32C3 XIAO_ESP32C3
esp32s2-devkitlipo-usb OLIMEX ESP32-S2-DevKit-Lipo-USB
esp32thing SparkFun ESP32 Thing
esp32s2usb ESP32S2 Native USB
mini Arduino Mini
atmega168 ATmega168
atmega328 ATmega328P
nano32 Nano32
codecell CodeCell
m5stack_tough M5Tough
d32 LOLIN D32
waveshare_esp32s3_touch_lcd_128 Waveshare ESP32S3 Touch LCD 128
XIAO_ESP32C6 XIAO_ESP32C6
sonoff_dualr3 Sonoff DUALR3
ch_denky Denky
chiwawa Arduino Industrial 101
waveshare_esp32_s3_touch_lcd_169 Waveshare ESP32-S3-Touch-LCD-1.69
um_feathers2neo UM FeatherS2 Neo
robotControl Arduino Robot Control
wifiduino32c3 WiFiduinoV2
atmegang Arduino NG or older
atmega168 ATmega168
atmega8 ATmega8
tamc_termod_s3 TAMC Termod S3
piranha_esp-32 Piranha ESP-32
waveshare_esp32_s3_touch_lcd_185 Waveshare ESP32-S3-Touch-LCD-1.85
quantum Noduino Quantum
espino32 ThaiEasyElec's ESPino32
esp32thing_plus SparkFun ESP32 Thing Plus
upesy_esp32c3_basic uPesy ESP32C3 Basic
esp32wroverkit ESP32 Wrover Kit (all versions)
lopy4 LoPy4
lolin_s3_pro LOLIN S3 Pro
um_omgs3 UM OMGS3
esp32-poe OLIMEX ESP32-POE
adafruit_camera_esp32s3 Adafruit pyCamera S3
healthypi4 ProtoCentral HealthyPi 4
m5stack_coreink M5CoreInk
adafruit_itsybitsy_esp32 Adafruit ItsyBitsy ESP32
gen4-ESP32-S3R8n16 4D Systems gen4-ESP32 16MB Modules (ESP32-S3R8n16)
m5stack_stamp_c3 M5StampC3
m5stack_stickc_plus M5StickCPlus
adafruit_qtpy_esp32s3_n4r2 Adafruit QT Py ESP32-S3 (4M Flash 2M PSRAM)
atd147_s3 ATD1.47-S3
crabik_slot_esp32_s3 Crabik Slot ESP32-S3
m5stack_poe_cam M5PoECAM
metro_esp-32 Metro ESP-32
wesp32 Silicognition wESP32
sparkfun_esp32c6_qwiic_pocket SparkFun ESP32-C6 Qwiic Pocket
esp32-devkitlipo OLIMEX ESP32-DevKit-LiPo
um_tinys2 UM TinyS2
esp32s2 ESP32S2 Dev Module
bpi-bit BPI-BIT
lolin_c3_pico LOLIN C3 Pico
um_tinys3 UM TinyS3
esp32s3 ESP32S3 Dev Module
espectro32 ESPectro32
esp32s2-devkitlipo OLIMEX ESP32-S2-DevKit-Lipo
sparkfun_esp32_iot_redboard SparkFun ESP32 IoT RedBoard
um_feathers2 UM FeatherS2
unomini Arduino Uno Mini
uPesy_edu_esp32 uPesy EDU ESP32
um_feathers3 UM FeatherS3
epulse_feather ThingPulse ePulse Feather
watchy Watchy
heltec_wireless_shell_V3 Heltec Wireless Shell (V3)
featheresp32 Adafruit ESP32 Feather
waveshare_esp32_s3_touch_lcd_43B Waveshare ESP32-S3-Touch-LCD-4.3B
esp32-poe-iso OLIMEX ESP32-POE-ISO
gemma Arduino Gemma
nano Arduino Nano
atmega168 ATmega168
atmega328 ATmega328P
atmega328old ATmega328P (Old Bootloader)
elecrow_crowpanel_7 Elecrow CrowPanel 7.0P
diecimila Arduino Duemilanove or Diecimila
atmega168 ATmega168
atmega328 ATmega328P
atd35s3 ATD3.5-S3
OpenKB INEX OpenKB
esp320 Electronic SweetPeas - ESP320
esplora Arduino Esplora
waveshare_esp32_s3_touch_amoled_241 Waveshare ESP32-S3-Touch-AMOLED-2.41
heltec_wireless_stick_lite Heltec Wireless Stick Lite / Wireless Shell
LilyPadUSB LilyPad Arduino USB
cw02 XinaBox CW02
kb32 KB32-FT
esp32-trueverit-iot-driver-mkii Trueverit ESP32 Universal IoT Driver MK II
onehorse32dev Onehorse ESP32 Dev Module
BharatPi-LoRa BharatPi LoRa Module
leonardo Arduino Leonardo
m5stack_paper M5Paper
esp32s3camlcd ESP32S3 CAM LCD
nebulas3 Nebula S3
adafruit_feather_esp32c6 Adafruit Feather ESP32-C6
sensebox_mcu_esp32s2 senseBox MCU-S2 ESP32-S2
sensesiot_weizen Senses's WEIZEN
adafruit_qtpy_esp32s2 Adafruit QT Py ESP32-S2
ttgo-t7-v14-mini32 TTGO T7 V1.4 Mini32
namino_rosso Namino Rosso
heltec_ht_de01 Heltec E-Ink Driver
m5stack_timer_cam M5TimerCAM
adafruit_qtpy_esp32_pico Adafruit QT Py ESP32
um_nanos3 UM NanoS3
bt Arduino BT
atmega168 ATmega168
atmega328 ATmega328P
franzininho_wifi_esp32s2 Franzininho WiFi
wipy3 WiPy 3.0
pocket_32 Dongsen Tech Pocket 32
ttgo-t7-v13-mini32 TTGO T7 V1.3 Mini32
kits-edu KITS ESP32 EDU
nologo_esp32s3_pico Nologo ESP32S3 Pico
sparkfun_esp32s3_thing_plus SparkFun ESP32-S3 Thing Plus
waveshare_esp32_s3_touch_lcd_5B Waveshare ESP32-S3-Touch-LCD-5B
m5stack_fire M5Fire
waveshare_esp32_s3_touch_amoled_18 Waveshare ESP32-S3-Touch-AMOLED-1.8
upesy_esp32s3_basic uPesy ESP32S3 Basic
odroid_esp32 ODROID ESP32
adafruit_feather_esp32s2_tft Adafruit Feather ESP32-S2 TFT
esp32-evb OLIMEX ESP32-EVB
lolin_c3_mini LOLIN C3 Mini
esp32h2 ESP32H2 Dev Module
yunmini Arduino Yún Mini
oroca_edubot OROCA EduBot
wt32-sc01-plus WT32-SC01 PLUS
adafruit_metro_esp32s2 Adafruit Metro ESP32-S2
deneyapkart Deneyap Kart
heltec_capsule_sensor_V3 Heltec Capsule Sensor (V3)
adafruit_feather_esp32s2_reversetft Adafruit Feather ESP32-S2 Reverse TFT
adafruit_metro_esp32s3 Adafruit Metro ESP32-S3
esp32_family ESP32 Family Device
walter DPTechnics Walter
namino_arancio Namino Arancio
atmegazero_esp32s2 ATMegaZero ESP32-S2
t-beam T-Beam
dfrobot_firebeetle2_esp32e FireBeetle 2 ESP32-E
sparkfun_pro_micro_esp32c3 SparkFun Pro Micro - ESP32C3
magicbit MagicBit
um_pros3 UM PROS3
mega Arduino Mega or Mega 2560
atmega1280 ATmega1280
atmega2560 ATmega2560 (Mega 2560)
circuitplay32u4cat Adafruit Circuit Playground
upesy_esp32c3_mini uPesy ESP32C3 Mini
mhetesp32minikit MH ET LIVE ESP32MiniKit
uno Arduino Uno
heltec_wireless_tracker Heltec Wireless Tracker
pro Arduino Pro or Pro Mini
16MHzatmega168 ATmega168 (5V, 16 MHz)
8MHzatmega168 ATmega168 (3.3V, 8 MHz)
16MHzatmega328 ATmega328P (5V, 16 MHz)
8MHzatmega328 ATmega328P (3.3V, 8 MHz)
weact_studio_esp32c3 WeAct Studio ESP32C3
deneyapminiv2 Deneyap Mini v2
esp32-sbc-fabgl OLIMEX ESP32-SBC-FABGL
turta_iot_node Turta IoT Node
roboheart_hercules RoboHeart Hercules
deneyapkart1A Deneyap Kart 1A
m5stack_stamp_pico M5StampPico
lolin_s3 LOLIN S3
twatchs3 LilyGo T-Watch-S3
frogboard Frog Board ESP32
heltec_wireless_paper Heltec Wireless Paper
dfrobot_firebeetle2_esp32s3 DFRobot Firebeetle 2 ESP32-S3
ET-Board ET-Board
gpy Pycom GPy
viralink32g11 ViraLink Gate32-1.1
BharatPi-Node-Wifi BharatPi Node Wifi Module
fio Arduino Fio
waveshare_esp32_s3_zero Waveshare ESP32-S3-Zero
ioxesp32c6 IOXESP32-C6
VALTRACK_V4_VTS_ESP32_C3 VALTRACK_V4_VTS_ESP32_C3
Bee_S3 Bee S3
XIAO_ESP32S3 XIAO_ESP32S3
mhetesp32devkit MH ET LIVE ESP32DevKIT
lilygo_t_display LilyGo T-Display
Geekble_ESP32C3 Geekble Mini ESP32-C3
dpu_esp32 DPU ESP32
heltec_wireless_stick_lite_V3 Heltec Wireless Stick Lite(V3)
m5stack_unit_cams3 M5UnitCAMS3
adafruit_qualia_s3_rgb666 Adafruit Qualia ESP32-S3 RGB666
nora_w10 u-blox NORA-W10 series (ESP32-S3)
circuitart_zero_s3 CircuitART Zero S3
alksesp32 ALKS ESP32
lolin32 WEMOS LOLIN32
esp32c3m1IKit ESP-C3-M1-I-Kit
wifiduino32s3 WiFiduino32S3
adafruit_feather_esp32s3_tft Adafruit Feather ESP32-S3 TFT
espea32 ESPea32
hornbill32minima Hornbill ESP32 Minima
ws_esp32_s3_matrix Waveshare ESP32-S3-Matrix
connaxio_espoir Connaxio's Espoir
nodemcu-32s NodeMCU-32S
dfrobot_romeo_esp32s3 DFRobot Romeo ESP32-S3
namino_bianco Namino Bianco
fm-devkit ESP32 FM DevKit
esp32micromod SparkFun ESP32 MicroMod
vintlabs-devkit-v1 VintLabs ESP32 Devkit
nologo_esp32c3_super_mini Nologo ESP32C3 Super Mini
waveshare_esp32_s3_lcd_169 Waveshare ESP32-S3-LCD-1.69
nano_nora Arduino Nano ESP32
aw2eth CNRS AW2ETH
Bee_Motion_Mini Bee Motion Mini
d-duino-32 D-duino-32
m5stack_stamp_s3 M5StampS3
esp32doit-devkit-v1 DOIT ESP32 DEVKIT V1
intorobot-fig IntoRobot Fig
CoreESP32 Microduino-CoreESP32
widora-air Widora AIR
adafruit_matrixportal_esp32s3 Adafruit MatrixPortal ESP32-S3
lilygo_t3s3 LilyGo T3-S3
esp32wrover ESP32 Wrover Module
adafruit_feather_esp32s3_nopsram Adafruit Feather ESP32-S3 No PSRAM
esp32da ESP32-WROOM-DA Module
mPython Labplus mPython
m5stack_dial M5Dial
um_tinypico UM TinyPICO
megaADK Arduino Mega ADK
ioxesp32 IOXESP32
esp32-gateway OLIMEX ESP32-GATEWAY
cezerio_dev_esp32c6 cezerio dev ESP32C6
m5stack_dinmeter M5DinMeter
esp32s3-devkitlipo OLIMEX ESP32-S3-DevKit-Lipo
aventen_s3_sync Aventen S3 Sync
lolin_s3_mini_pro LOLIN S3 Mini Pro
nina_w10 u-blox NINA-W10 series (ESP32)
m5stack_capsule M5Capsule
m5stack_cores3 M5CoreS3
lolin_s3_mini LOLIN S3 Mini
jczn_2432s028r ESP32-2432S028R CYD
epulse_feather_c6 ThingPulse ePulse Feather C6
ttgo-t1 TTGO T1
esp32s3box ESP32-S3-Box
bpi_leaf_s3 BPI-Leaf-S3
lilygo_t_display_s3 LilyGo T-Display-S3
makergo_c3_supermini MakerGO ESP32 C3 SuperMini
lionbits3 Lion:Bit S3 STEM Dev Board
m5stack_stickc M5StickC
adafruit_feather_esp32s2 Adafruit Feather ESP32-S2
sparkfun_esp32c6_thing_plus SparkFun ESP32-C6 Thing Plus
unowifi Arduino Uno WiFi
~$
